Trench Cave-Ins: Why the Five Foot Rule Is Wrong in Canada (2026)

Soil weighs between 1,200 and 1,800 kilograms per cubic metre. A single cubic metre landing on a worker is roughly the weight of a small car, arriving in under a second with no warning.

The mechanism that kills is not burial. It is compressive asphyxia: the chest is pinned, breathing stops within minutes, and it can happen while the worker's head is still above the soil line. There is no such thing as a minor trench collapse.

The five foot rule is American, and it is wrong here

Search this topic and almost everything you will read cites a five foot trigger depth. That is the United States threshold, and in most of Canada it is too deep.

In British Columbia and Ontario, protective systems are triggered at 1.2 metres, roughly four feet. In Alberta the trigger is 1.5 metres, roughly five feet. A crew working to American guidance in BC or Ontario is running unprotected trenches that the regulation already covers.

The relevant provisions are WorkSafeBC's Occupational Health and Safety Regulation Part 20 and Alberta's OHS Code Part 32, with equivalents in every other jurisdiction. Confirm the trigger and the requirements where you work rather than assuming a number from a toolbox talk.

More importantly, the trigger depth is an absolute minimum rather than a line you have to reach. Canadian guidance on trenching is explicit that if a competent person determines a shallower trench poses a cave-in hazard because of poor soil, a high water table or surcharge loads from nearby equipment, protective systems are required regardless of depth.

Workers have died in trenches well under a metre deep. Depth determines when protection is mandatory, not when a trench becomes capable of killing someone.

Why trenches collapse the way they do

A trench is defined by proportion rather than size: an excavation deeper than it is wide, typically under 4.5 metres across. Those narrow walls are inherently unstable, which is what separates a trench from a broad excavation.

Soil has no tensile strength. A vertical face is held up by friction and cohesion, both of which change with moisture, vibration and time. A wall that stood yesterday is not evidence that it will stand today.

Several things actively work against it. Rain saturates soil and adds weight. Vibration from traffic, compactors and passing equipment breaks down cohesion. Previously disturbed ground, common where utilities have been installed before, behaves nothing like undisturbed soil.

Spoil placement is the one crews get wrong most often. Excavated material piled at the edge of the trench is surcharge loading: extra weight pressing down beside the wall, pushing it inward. The pile that feels convenient is the pile causing the collapse.

Equipment parked near the edge does the same thing, and so does stacked pipe or stockpiled material. Keep loads back from the edge by the distance your jurisdiction specifies, and further where soil is poor.

Three protective systems, and a person who decides

Every Canadian jurisdiction accepts the same three approaches.

Sloping or benching cuts the walls back at an angle, or steps them, so the face cannot fall vertically. The angle depends on soil type, which is why classification comes first. It needs space, which is why it suits open ground rather than street work.

Shoring supports the walls in place with hydraulic, pneumatic or timber systems that press against the faces. It suits confined sites where sloping is impossible.

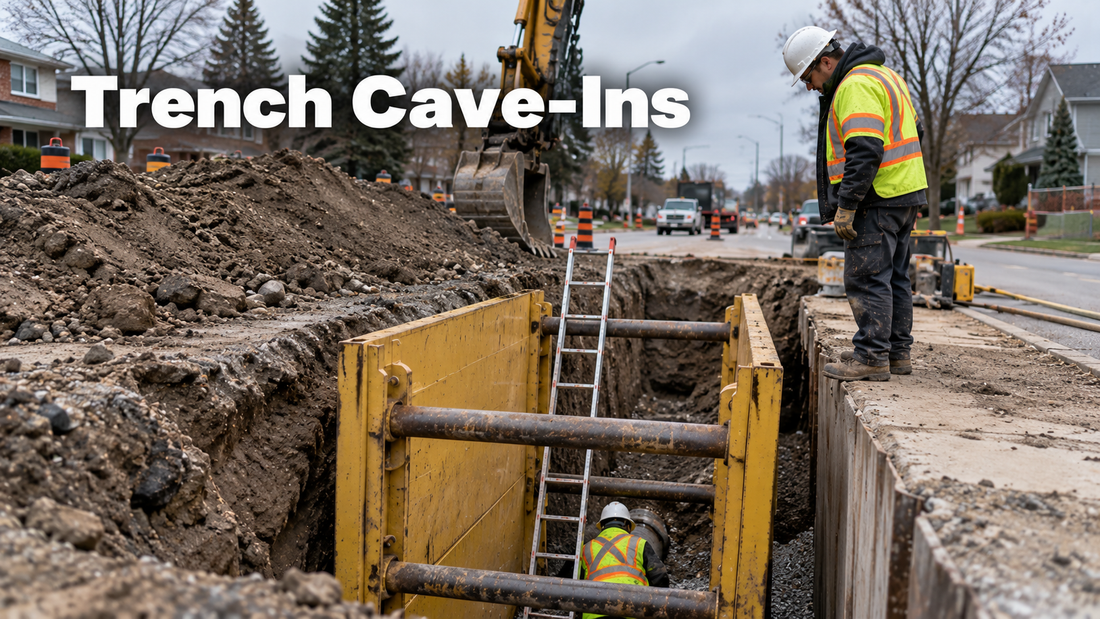

Shielding uses a trench box, which does not prevent a collapse so much as protect the worker inside it when one happens. That distinction matters: a trench box is a shelter, and a worker outside it is unprotected even if the box is in the trench.

Soil classification has to be assessed before anyone enters, because it determines which system is required and what slope angle is adequate.

Above all, a competent person is required on every excavation site, every day, with the authority to shut down unsafe work. That last clause is the part that gets hollowed out: a competent person who cannot stop the job is a title rather than a control.

What we cannot sell you

Worth saying plainly, because this article is on a workwear site. We do not stock trench boxes, shoring systems, hydraulic struts or ladders rated for excavation egress. Those come from specialist excavation suppliers and rental yards.

The PPE we do supply sits around the edges rather than at the centre. Head protection matters because of falling material from above the trench and from equipment working nearby, covered in our hard hat safety guide.

Conspicuity matters because trenching crews work around moving equipment with restricted sightlines, and a worker in a trench is below the operator's eyeline entirely. Our guides to CSA Z96 classes and levels and traffic control person equipment cover that, since much trenching is roadside.

Footwear matters for footing on spoil and wet trench bottoms, covered in our guides to slip resistance at work and work boots for concrete workers. None of it stops a cave-in.

Daily inspection and getting out

Inspections are required before each shift and again after any rain, vibration or changed conditions. That is not a paperwork rhythm, it is a recognition that trench stability changes overnight and after every storm.

The conditions that should trigger a fresh look: rain or snowmelt, a vibration source starting nearby, a change in the water table, spoil or equipment moved closer to the edge, and any tension cracks appearing in the ground parallel to the trench. Tension cracks are the visible warning that the soil is already moving.

Egress is the second requirement crews underestimate. Canadian excavation guidance notes Alberta's requirement for a safe entry and exit point within 8 metres of any worker in a trench deeper than 1.5 metres.

Eight metres is not an arbitrary number. It is roughly how far a person can move in the time a wall takes to come in, which is the honest way to think about ladder placement.

Where a trench runs long, that means multiple ladders rather than one at the end. A crew that has to walk thirty metres to a ladder has no egress at all in an emergency.

The atmosphere problem underground

Deeper excavations can accumulate hazardous atmospheres, and a trench can meet the definition of a confined space.

Heavier-than-air gases settle into low ground. Exhaust from equipment running at the surface drifts down. Leaking gas services, sewer connections and decaying organic matter all produce their own problems, and oxygen can be displaced without any smell to warn anyone.

Where a hazardous atmosphere is possible, atmospheric testing and the confined space requirements apply on top of the cave-in controls rather than instead of them. An air-purifying respirator does not help in an oxygen-deficient atmosphere, a point covered in our guide to respirator fit testing under CSA Z94.4.

Rescue planning belongs here for the same reason it belongs in work at height. A collapse buries the worker in a mass that cannot be moved by hand, and untrained rescuers entering an unprotected trench is how single fatalities become multiple ones. Our guide to suspension trauma and fall rescue makes the same argument about arrested falls, and our guide to CSA Z1220 first aid kit requirements covers on-site provision.

The uncomfortable part

Across most of the trench fatalities documented in North America over the past decade, the protective equipment was either sitting unused nearby or was never brought to the job at all.

That inverts what we usually say on this site. Most PPE failures we write about are procurement problems, solvable by buying the right thing. Trench deaths are not. The box was on the trailer. The shoring was in the yard. Somebody decided this one would be quick.

It is worth naming the decision honestly, because it is almost always the same one: the trench will only be open for twenty minutes, the soil looks fine, the last one held, and setting up the box takes longer than the work. Every part of that reasoning has appeared in a fatality report.

The controls that address it are organizational rather than technical. A competent person with genuine authority to stop work. Supervisors who do not reward speed over setup. And a crew culture where entering an unprotected trench is treated as a refusal-worthy situation rather than a judgement call.

For the wider picture on what should be in place before work starts, see the complete PPE checklist for Canadian workers, our guide to PPE requirements for Canadian construction sites, our guide to who pays for work boots and PPE in Canada and the complete guide to CSA work boots in Canada.

Frequently Asked Questions

At what depth does a trench need a protective system in Canada?

It varies by province. British Columbia and Ontario trigger at 1.2 metres, roughly four feet, while Alberta triggers at 1.5 metres, roughly five feet. The widely quoted five foot rule is the American threshold and is too deep for most Canadian jurisdictions. Confirm the requirement where you work.

Can a shallow trench still be dangerous?

Yes. Trigger depths are absolute minimums, not the point at which a trench becomes hazardous. If a competent person determines that poor soil, a high water table or surcharge loads create a cave-in hazard, protective systems are required regardless of depth. Workers have died in trenches under a metre deep.

How does a trench collapse actually kill someone?

Usually by compressive asphyxia rather than burial. Soil weighs 1,200 to 1,800 kilograms per cubic metre, and the weight pins the chest so breathing stops within minutes. This can happen even when the worker's head remains above the soil line.

What are the three protective systems?

Sloping or benching cuts the walls back at an angle or into steps. Shoring supports the walls in place with hydraulic, pneumatic or timber systems. Shielding uses a trench box, which protects the worker inside it during a collapse rather than preventing the collapse. Soil classification determines which is appropriate.

Why does spoil placement matter?

Excavated material piled at the trench edge creates surcharge loading, adding weight beside the wall that pushes it inward. The same applies to equipment, pipe and stockpiled material near the edge. Keeping loads back from the edge is one of the simplest cave-in controls available.

How often must a trench be inspected?

Before each shift, and again after any rain, vibration or changed conditions. Trench stability changes overnight and after every storm. Tension cracks running parallel to the trench in the surrounding ground are a visible sign the soil is already moving and warrant immediate attention.

This guide is general workplace safety information and is not training. Excavation work requires soil assessment and protective system selection by a competent person, daily inspection and jurisdiction-specific compliance. Requirements differ across Canadian provinces and territories; confirm yours with the occupational health and safety authority that governs your workplace before any worker enters an excavation.
