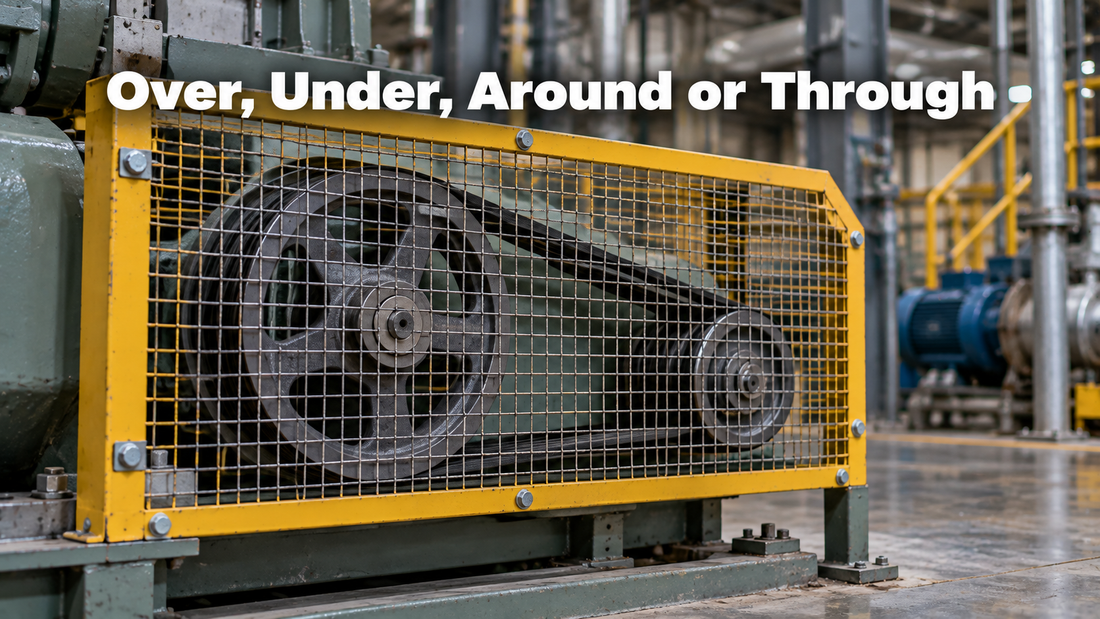

Machine Guarding in Canada: Over, Under, Around or Through (2026)

A guard is not judged by whether it is present. It is judged by whether a person can reach over it, under it, around it or through it and still touch the hazard. British Columbia's guidance on safeguarding puts the test in exactly those four words, and most deficient guards fail on one of them while looking perfectly adequate from across the shop.

The second test is harder still. Under the Canadian standard, guards and protective devices must not be easy to bypass or render non-operational. An interlock a worker can defeat with a spare key, a magnet or a zip tie does not meet that requirement, whatever the catalogue says.

The Canadian standard is Z432

Machine safeguarding in Canada is governed by provincial regulation and by CSA Z432, Safeguarding of machinery, now in its fourth edition as Z432:23, superseding the 2016, 2004 and 1994 editions. It is a National Standard of Canada, developed with funding from provincial and territorial governments through their labour law administrators association.

It applies to protecting workers from hazards arising from mobile or stationary machinery, and it sets the criteria for describing, selecting and applying guards and protective devices. The fourth edition was restructured to align with the hierarchy of control, which is a meaningful change rather than a formatting one.

Z432 does not stand alone. Where a machine-specific Canadian standard exists, it is used alongside Z432 for the most effective protection: cranes, elevating work platforms, presses, and industrial robots all have their own.

Note the scope limit as well. The standard is intended to apply to newly manufactured and newly installed machinery as of its publication date, which means older equipment is governed by the edition in force when it was installed plus whatever provincial regulation requires now. That is a question for a competent person rather than an assumption.

Over, under, around or through

The four-reach test is the most useful thing a supervisor can carry onto a floor, because it converts a vague impression into four specific checks.

Can someone reach over the top? Perimeter guarding has a minimum height for this reason, and a guard that stops at waist height in front of an overhead hazard has solved nothing.

Can someone reach under the bottom? A gap at floor level lets a hand or an arm go beneath, and perimeter barriers have a maximum bottom clearance for that.

Can someone reach around the side? Guards installed on the visible face of a machine while an open side remains are a recurring finding.

Can someone reach through an opening? This is where the engineering gets specific. Where a guard has an opening, the reach distance to the hazardous part has to meet calculated requirements, harmonized in the current standard with the international safety-distance standards. Smaller opening, closer the guard can sit; larger opening, further back it must be.

That last point catches people using expanded metal or mesh chosen for visibility rather than for calculated opening size. The mesh looks protective and the fingers still reach.

A guard you have to remove daily will stop going back on

Canadian regulation includes a design requirement that gets overlooked: where practicable, a safeguard should be designed to allow lubrication and routine maintenance without removing the guard.

That is not a convenience clause. It is a recognition of how guards actually disappear. A guard that must come off every shift to grease a bearing will eventually stay off, and the person who left it off was responding to a design problem rather than being careless.

Access panels, grease line extensions and viewing windows exist to solve this, and they are cheaper than the incident.

The related requirement is that a fixed guard should be modifiable or removable only with the use of tools. A guard held on with wing nuts or a quick-release latch is not a fixed guard in the sense the regulation means, because removal is trivial.

And the sequencing requirement ties directly to energy control: a safeguard should be removed or made inoperable only after the machine has been locked out. Pulling a guard on a running machine is the scenario the whole framework exists to prevent.

Bypassing is a design failure, not just a behaviour

The standard's requirement that guards and protective devices not be easy to bypass or render non-operational changes who is responsible when one gets defeated.

Interlock bypass for speed or convenience is one of the most commonly identified gaps in Canadian machine safety audits. The usual forms are familiar: a spare actuator key taped inside the panel, a magnet on a sensor, a switch held closed with a cable tie, a light curtain muted permanently rather than during the intended part of the cycle.

Treating that purely as worker misconduct misses the standard's point. If defeating the interlock is easy, the device has not met its design requirement, and the fix includes selecting devices that resist defeat rather than only disciplining the person who defeated one.

It also means asking why. A worker bypasses an interlock because the guarded access is the only practical way to clear a jam, load a part or make an adjustment the process requires. Solving that task is what removes the incentive.

Emergency stops belong in the same conversation, and a recurring finding is e-stops positioned where they are difficult to reach. An e-stop the operator cannot hit from where the hazard occurs is decoration.

Guarding sits above lockout in the hierarchy

The fourth edition's restructuring around the hierarchy of control makes the relationship explicit, and it matters for how you spend money.

Eliminating the hazard or designing it out comes first. Substituting a safer process comes next. Guards and protective devices are engineering controls, which puts them well above procedures and PPE.

The practical consequence is that a guard which lets an operator clear a jam without reaching into the danger zone removes the task that would otherwise require energy isolation. One capital fix removes a recurring exposure rather than managing it forever with a procedure.

Where access genuinely is required, energy control takes over, and the two systems have to interlock properly rather than each assuming the other is handling it.

Procedures and PPE sit at the bottom as always. No glove protects a hand from a point of operation, and a worker relying on reaction time is relying on the weakest control available.

Ontario's pre-start review

Ontario has an obligation that catches employers modifying existing equipment, and it is worth knowing before you order the fencing.

Adding a protective element such as interlocked perimeter fencing to a system can trigger a requirement for a Pre-Start Health and Safety Review. Where the change affects only a specific machine within a system, the review may be limited to that machine; where it affects the system, the review covers the system.

That turns what looks like a straightforward safety improvement into a documented engineering exercise, and discovering it after installation is expensive. Budget for the review alongside the guarding.

Other provinces handle this differently. British Columbia's guidance on safeguarding of machinery sets out its own requirements built on Z432, including the reach test quoted at the top of this article.

Confirm your own jurisdiction rather than assuming, since guarding obligations, review triggers and referenced standard editions all vary.

What PPE does and does not do here

Worth being direct, since this is a workwear site. We do not sell guards, interlocks, light curtains, safety relays or fencing. Those come from machine safety suppliers and integrators, and they are the control this article is about.

What we supply protects against the residual hazards around properly guarded machinery. Eye protection against ejected material, chips and coolant, covered in our safety glasses guide.

Hand protection for handling material, sharp edges and process chemicals, covered in our guides to work gloves and choosing chemical resistant gloves. One caution that belongs here: gloves near rotating machinery are an entanglement hazard, and there are operations where wearing them is more dangerous than not.

Hearing protection where machinery noise warrants it, covered in our hearing protection guide, and arc-rated clothing where electrical hazards are present, covered in our guide to arc rated and FR clothing under CSA Z462.

And footwear for the plant floor, covered in our guides to work boots for millwrights, work boots for industrial maintenance workers and work boots for manufacturing workers, with the marks decoded in our guide to CSA work boot symbols.

Checking your own floor

Walk the four reaches on every guarded machine, physically rather than visually. Over, under, around, through.

Then look for the signs of a guard under pressure: fasteners missing, a panel leaning against the wall nearby, an interlock with tape on it, a light curtain with a permanent mute, a viewing window scratched opaque so nobody can see in.

Ask the operators what they have to do that the guarding makes awkward. That conversation surfaces the bypasses faster than an audit does, and it identifies the design problems worth fixing.

Check that e-stops are reachable from the operator position and from wherever the hazardous task actually happens, which is not always the same place.

And verify that the equipment is what it claims to be, since a safety-rated component is a claim until checked. Our guide to CSA certified versus CSA compliant covers why that distinction matters across every category. For the wider kit see the complete PPE checklist for Canadian workers, our guide to PPE requirements for Canadian construction sites and our guide to who pays for PPE in Canada.

Frequently Asked Questions

What is the Canadian machine guarding standard?

CSA Z432, Safeguarding of machinery, now in its fourth edition as Z432:23, published as a National Standard of Canada. It supersedes the 2016, 2004 and 1994 editions, and the current edition was restructured to align with the hierarchy of control. It is used alongside machine-specific standards where those exist.

How do I tell whether a guard is adequate?

Apply the four-reach test physically: can a person reach over, under, around or through the guard and access the hazard? Where a guard has an opening, the distance to the hazardous part must meet calculated reach-distance requirements, so mesh chosen for visibility rather than opening size is a common failure.

Is bypassing an interlock only a worker problem?

No. The standard requires that guards and protective devices not be easy to bypass or render non-operational, so an interlock that can be defeated with a spare key, magnet or cable tie has not met its design requirement. Worth asking why the bypass exists, since it usually points at a task the guarding makes impractical.

Can a guard be removed for maintenance?

Only after the machine is locked out. Canadian regulation also requires that, where practicable, safeguards be designed to allow lubrication and routine maintenance without removal, because a guard that must come off every shift will eventually stay off. Fixed guards should be removable only with tools.

Does adding guarding trigger any review in Ontario?

It can. Integrating a protective element such as interlocked perimeter fencing may trigger a requirement for a Pre-Start Health and Safety Review, covering either the specific machine or the wider system depending on what the change affects. Budget for that review alongside the guarding rather than discovering it afterward.

Does PPE substitute for machine guarding?

No. Guards are engineering controls and sit well above PPE in the hierarchy. No glove protects a hand at a point of operation, and gloves near rotating machinery can themselves be an entanglement hazard. PPE addresses residual hazards around properly guarded equipment.

This guide is general workplace safety information and is not engineering advice. Machine safeguarding requires risk assessment and guard selection by competent persons, and in some jurisdictions a formal pre-start review. Requirements differ across Canadian provinces and territories; confirm yours with the occupational health and safety authority that governs your workplace, and refer to CSA Z432 or the most current edition.
